SGGZ-8 Two-Head Oral Liquid Filling & Capping Machine
Product Overview
Product Overview

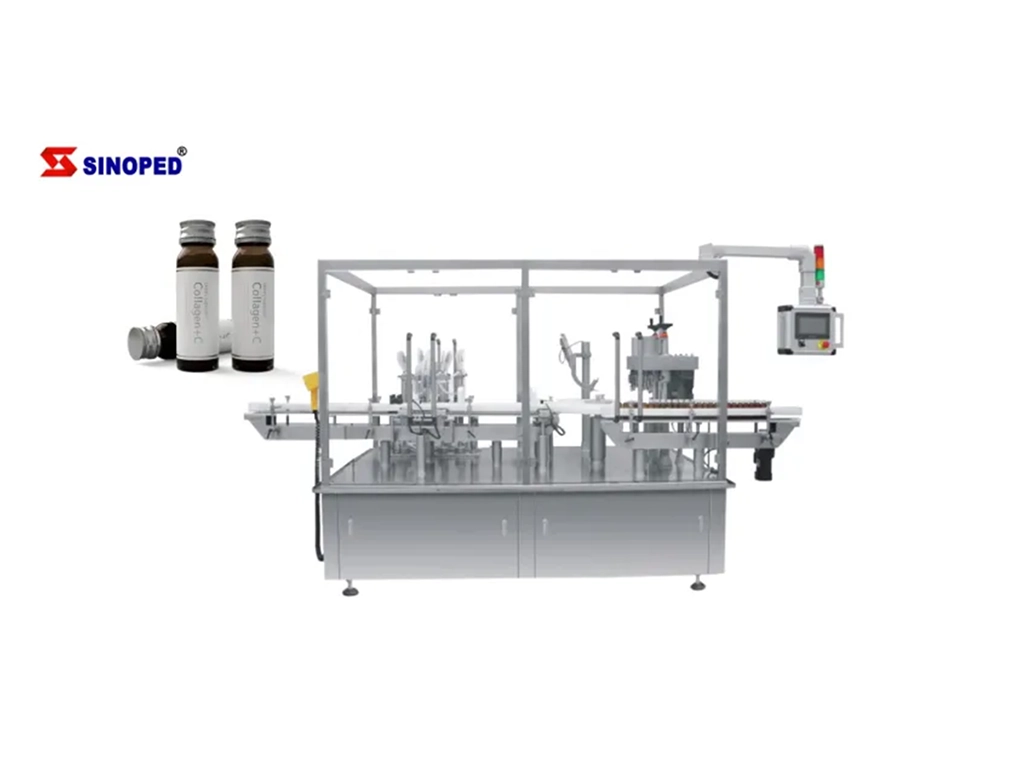

The SGGZ-8 Two-Head Oral Liquid Filling & Capping Machine is a fully automatic oral liquid filling machine designed for filling and screw capping pharmaceutical liquids, healthcare products, nutraceuticals, and other low- to medium-viscosity formulations. Suitable for containers ranging from 20 ml to 500 ml, the machine combines precision liquid dosing with reliable cap tightening in a compact, production-ready solution.
Engineered with a 316L stainless steel piston filling system, PLC control, and a patented four-knife magnetic torque capping mechanism, this automatic bottle filling and capping machine delivers stable filling accuracy, consistent sealing quality, and dependable performance during continuous operation. The intelligent no-bottle-no-filling function helps minimize product waste, while the user-friendly touchscreen simplifies production adjustments for different bottle sizes and filling volumes.
Designed for pharmaceutical manufacturers seeking efficient, GMP-oriented packaging equipment, the SGGZ-8 can also be integrated with bottle unscramblers, washing machines, sterilization tunnels, inspection systems, labeling machines, and cartoning equipment to create a complete oral solution filling line.
How It Works

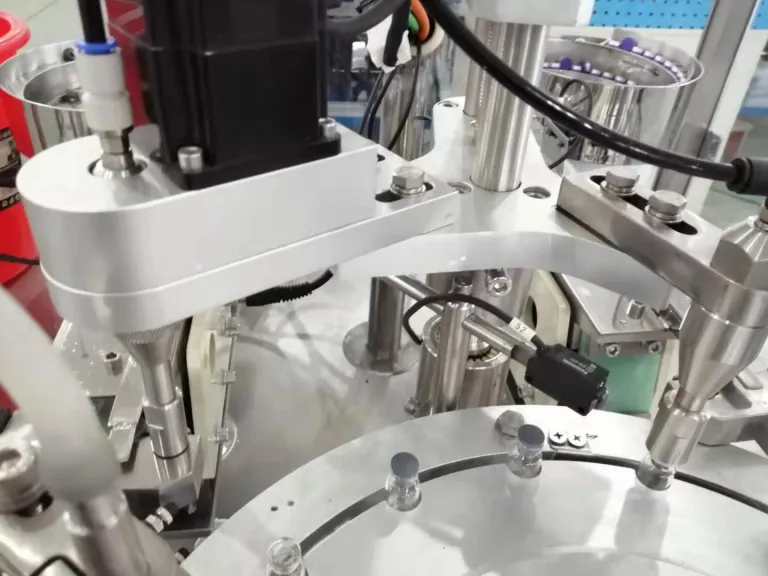

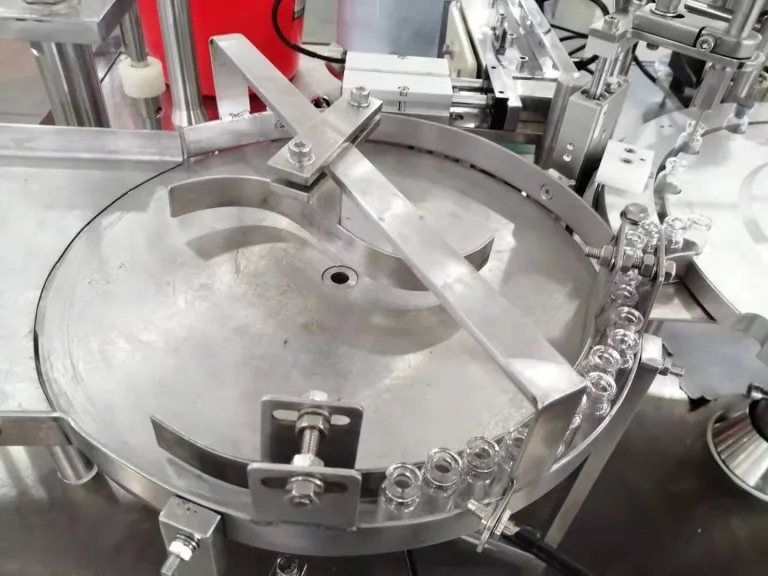

The production process begins with bottles entering the machine through an automatic infeed system, where they are accurately positioned for filling. Once detected by the sensors, the PLC activates the 316L stainless steel piston pump, delivering precise volumetric filling without dripping or product loss. If no bottle is detected, the machine automatically suspends filling to prevent unnecessary waste.

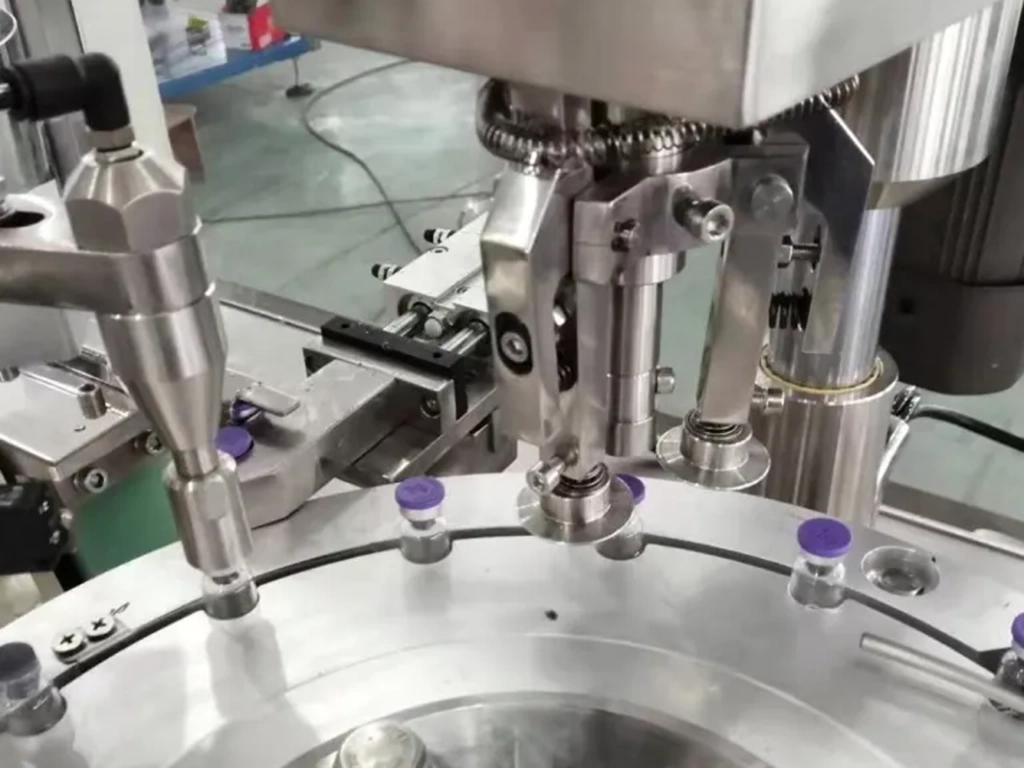

After filling, bottles are transferred to the capping station where caps are automatically fed and positioned. The patented four-knife magnetic torque mechanism applies consistent tightening force, producing secure, uniform screw caps while protecting bottles and closures from excessive torque. Finished products are then discharged for labeling, inspection, or downstream packaging, allowing the machine to operate seamlessly within a fully automated pharmaceutical packaging line.
Key Features
High-Precision Filling for Pharmaceutical Liquids
The filling system utilizes a precision 316L stainless steel piston pump, making it suitable for oral solutions, syrups, herbal extracts, vitamin liquids, and other pharmaceutical formulations. The hygienic wetted parts are easy to clean and designed to support GMP production environments. With a filling accuracy of ≤±2%, manufacturers can maintain consistent product quality while reducing liquid waste during continuous production.
Reliable Magnetic Torque Capping Technology

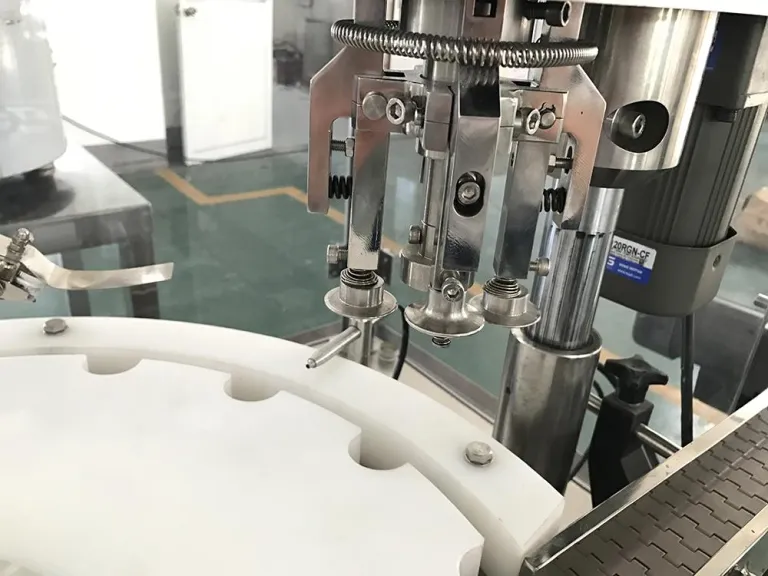

Unlike conventional screw capping systems, the SGGZ-8 adopts a patented four-knife magnetic torque design that delivers stable tightening force for both metal and plastic screw caps. The result is smooth sealing, attractive cap threads, and a capping success rate of 99% or higher, helping reduce packaging defects and improving production consistency.
Intelligent PLC Control for Easy Operation
The machine is equipped with an industrial PLC control system and an intuitive touchscreen interface, allowing operators to quickly adjust filling volumes, monitor production status, and modify operating parameters without complex mechanical adjustments. This intelligent control system shortens changeover time and improves production efficiency when different bottle specifications are processed.
Hygienic Design for GMP Manufacturing
Every product-contact component is manufactured from pharmaceutical-grade stainless steel to ensure excellent corrosion resistance and easy cleaning. The machine features a compact, enclosed structure that simplifies routine maintenance while supporting hygienic production practices commonly required by pharmaceutical and nutraceutical manufacturers.
Flexible Bottle Compatibility
Supporting bottle capacities from 20 ml to 500 ml, the machine accommodates glass bottles and compatible plastic containers fitted with metal or plastic threaded caps. This flexibility enables manufacturers to package multiple product formats on a single production platform while minimizing equipment investment.
Easy Integration into Complete Packaging Lines
The SGGZ-8 is designed as a standalone liquid filling machine or as part of a fully automated production line. It can be integrated with bottle unscramblers, bottle washing machines, tunnel sterilizers, visual inspection systems, labeling machines, inkjet printers, and cartoning machines, providing manufacturers with a scalable packaging solution that can grow alongside production requirements.
Technical Specifications
| Item | Specification |
| Model | SGGZ-8 |
| Filling Heads | 2 |
| Applicable Bottle Size | 20–500 ml |
| Production Capacity | 30–100 Bottles/min |
| Filling Accuracy | ≤ ±2% |
| Capping Success Rate | ≥99% |
| Filling System | 316L Stainless Steel Piston Pump |
| Capping Type | Four-Knife Magnetic Torque Screw Capping |
| Control System | PLC Control |
| Power Supply | 220V / 380V, 50Hz |
| Installed Power | 2.5 kW |
| Machine Weight | 750 kg |
| Dimensions | 3000 × 1500 × 1600 mm |
Selection Guide
The SGGZ-8 is an excellent choice for manufacturers seeking a balance between production efficiency, filling precision, and investment cost. With an output of 30–100 bottles per minute, it is particularly suitable for small- to medium-scale pharmaceutical production, nutraceutical manufacturing, and contract packaging operations that require frequent product changeovers.
Its compatibility with multiple bottle sizes allows a single machine to package different oral liquids, reducing the need for additional production equipment. Companies planning future expansion can also integrate the SGGZ-8 into a complete automated packaging line without replacing their existing filling system, making it a practical long-term investment.
Comparison
| Feature | Semi-Automatic Filling Machine | SGGZ-8 Two-Head Machine | High-Speed Multi-Head Machine |
| Automation | Partial | Fully Automatic | Fully Automatic |
| Filling Accuracy | Medium | High (≤±2%) | Very High |
| Production Capacity | Low | 30–100 Bottles/min | 120+ Bottles/min |
| Labor Requirement | High | Low | Very Low |
| Bottle Flexibility | Good | Excellent | Excellent |
| Investment Cost | Low | Medium | High |
| Recommended Users | Small Workshops | Pharmaceutical Manufacturers | Large-Scale Production |
Applications
The oral liquid filling and capping machine is widely used for packaging oral medicines, cough syrups, herbal extracts, nutritional supplements, vitamin solutions, veterinary oral liquids, and healthcare products. It is equally suitable for cosmetic liquids, essential oils, and other low-viscosity products requiring accurate filling and reliable screw capping.
With support for both glass and plastic bottles in various capacities, the machine provides manufacturers with the flexibility to package multiple product lines using a single production platform while maintaining stable filling performance and consistent sealing quality.
Installation & Maintenance
The SGGZ-8 is designed for straightforward installation within standard pharmaceutical production environments. After connection to the appropriate power supply and production line, the machine can be commissioned quickly through parameter configuration and filling volume calibration. Basic operator training is sufficient for routine production thanks to the intuitive PLC control interface.
Daily maintenance mainly involves cleaning the filling system, inspecting the capping mechanism, and checking sensors for proper operation. Regular lubrication of mechanical components and periodic inspection of seals and electrical connections help maintain stable performance and extend the service life of the equipment while reducing unexpected downtime.
Compliance & Industry Standards
The SGGZ-8 is engineered to support modern pharmaceutical manufacturing practices through its hygienic design, precision filling system, and high-quality stainless steel construction. Product-contact components utilize 316L stainless steel, making the equipment suitable for pharmaceutical and food-related liquid applications.
Its design philosophy aligns with GMP production requirements and supports integration into quality management systems commonly used by pharmaceutical manufacturers. Where required, the machine can also be customized to meet regional electrical standards and customer-specific compliance requirements.
Troubleshooting
| Problem | Possible Cause | Recommended Solution |
| Filling volume is inconsistent | Pump requires calibration | Recalibrate filling volume and inspect piston seals |
| No filling occurs | Bottle sensor not detecting containers | Clean or adjust the photoelectric sensor |
| Loose caps | Incorrect torque setting | Adjust the magnetic torque capping mechanism |
| Liquid dripping | Filling nozzle contamination | Clean or replace the filling nozzle |
| Reduced production speed | Bottle transfer obstruction | Check conveyor and bottle guide alignment |
| Machine alarm | Parameter or sensor abnormality | Review PLC alarm information and inspect sensors |
Frequently Asked Questions
Can the machine fill different bottle sizes?
Yes. The SGGZ-8 supports bottle capacities from 20 ml to 500 ml. Filling volume and guide components can be adjusted to accommodate different container specifications with minimal downtime.
What types of liquids can this machine handle?
It is suitable for oral solutions, pharmaceutical syrups, herbal extracts, nutritional supplements, vitamin liquids, veterinary medicines, and other low- to medium-viscosity liquid products.
How accurate is the filling system?
The machine achieves a filling accuracy of ≤±2% under normal operating conditions, ensuring stable product quality for pharmaceutical production.
Can it work with both metal and plastic caps?
Yes. The patented magnetic torque capping system is compatible with both metal and plastic threaded screw caps, providing secure sealing and an attractive finished appearance.
Can this machine be integrated into an automatic production line?
Absolutely. It can be connected with bottle unscramblers, bottle washing machines, sterilization tunnels, inspection equipment, labeling machines, and cartoning systems to create a complete pharmaceutical packaging line.
Is OEM customization available?
Yes. The machine can be customized according to bottle dimensions, filling volume, production capacity, electrical standards, and other project-specific requirements.
